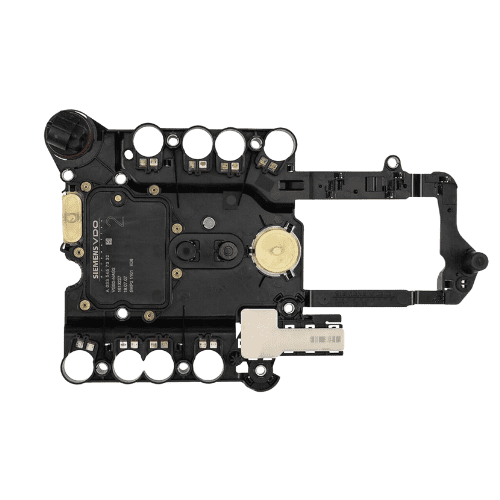

Mercedes 7G Tronic 722.9 Transmission Control Module TCM Conductor Plate Failure
This issue commonly occurs in Mercedes vehicles equipped with the 7G-Tronic automatic transmission, identified by gearbox code – 722.9. Symptoms include prolonged holding in one gear followed by abrupt shifting, resulting in a rough and jerky gear change.
Initially intermittent, this problem escalates to a permanent state if left unresolved. It stems from the breakdown of the TCM conductor plate internally, impeding the monitoring of the input shaft’s rotational speed by the control module. Consequently, it fails to gauge torque converter slippage, leading to ineffective torque clutch lock-up, hindering smooth gear changes or even gear selection in severe cases.
Common Faults:
- Engine management light illuminated (in most cases but not always)
- Gearbox goes into “Limp Mode” with reduced power
- Intermittently failing to change gear
- “Sticking” or staying in one gear
- Failing to select a gear
When attempting to diagnose this issue within cars the fault codes can be a very useful tool. While the common symptoms are a useful tell, fault codes generally can give a more accurate read as to the issue with the car.
Common Fault Codes
- P2207 Component Y3/8n3 (Output speed sensor (VGS)) is defective – upon request
- P2206 Component Y3/8n3 (Output speed sensor (VGS)) is defective – upon request
- P2550 Component Y3/8n3 (Output speed sensor (VGS)) is defective – upon request
- 0717 – the signal from component Y3/8n1 (turbine speed sensor, VGS) is not available
- 0718 – the component Y3/8n1 (turbine speed sensor, VGS) is defective,
- 0722 The signal from component Y3/8n3 (Output speed sensor (VGS)) is not available – upon request
- 2201 – the component Y3/8n2 (internal speed sensor) is defective
Affected Vehicles - Shop Now
-
MERCEDES - Continental 7G-tronic (722.9) First, Second and Third Generation - REPAIR SERVICE in Make Mercedes and Model C-Class and Series 2000-2008
£210.00 Incl. VAT Buy Now -
MERCEDES - Continental 7G-tronic (722.9) First, Second and Third Generation - REPAIR SERVICE in Make Mercedes and Model C-Class and Series 2008-2015
£210.00 Incl. VAT Buy Now -
MERCEDES - Continental 7G-tronic (722.9) First, Second and Third Generation - REPAIR SERVICE in Make Mercedes and Model CL-CLASS and Series 1998-2006
£210.00 Incl. VAT Buy Now -
MERCEDES - Continental 7G-tronic (722.9) First, Second and Third Generation - REPAIR SERVICE in Make Mercedes and Model CL-CLASS and Series 2005-2013
£210.00 Incl. VAT Buy Now -
MERCEDES - Continental 7G-tronic (722.9) First, Second and Third Generation - REPAIR SERVICE in Make Mercedes and Model CLK and Series 2002-2010
£210.00 Incl. VAT Buy Now
Common Questions:
We at Essex Recons strive to exceed your expectations in the quality of our repairs. We aim to complete our repairs in a timely fashion while adhering to all ESD safety measures when working on sensitive equipment.
When ordered from our website, the Mercedes 7G Tronic comes with a Lifetime Warranty*.
To pay for the rebuild click the product link(s) above to select the module you require. Order straight from our website. Once the order is complete, package your TCM inside a sturdy box with plenty of packaging material. Ensure that you include your contact details and order number somewhere within the box. Send us your package by a tracked courier. Once we receive your product we will test, rebuild and return your module with the 2 year warranty included. Alternatively, you can order our exchange service in which we will send you a part. We will still require your part back as part of the exchange following the previous steps.
